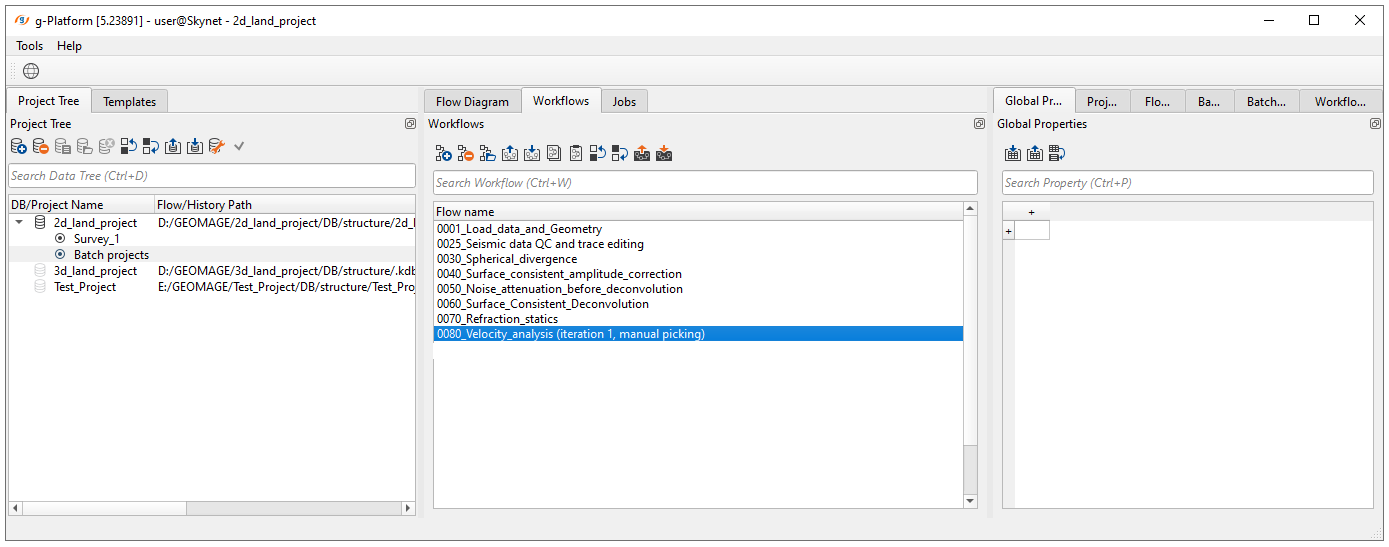

8. Velocity analysis (iteration 1, manual picking)

In seismic processing one of the key steps is velocity analysis which is used for compensation of distance between source and receiver. This distance or offset has unwanted influence on travel time, so we need to apply normal move out (NMO) corrections to bring reflections on zero-offset, to make reflection's hodograph flat. Seismic wave speed is usually called velocity, and the estimation process is called velocity analysis. In time processing, we estimate the stacking or migration velocities and in the case of depth imaging, we need to build the velocity model with using different kinds of methods like tomography, FWI and so on. In the begging of velocity estimation we will use manual velocity picking. We will observe automatic velocity picking on the next steps.

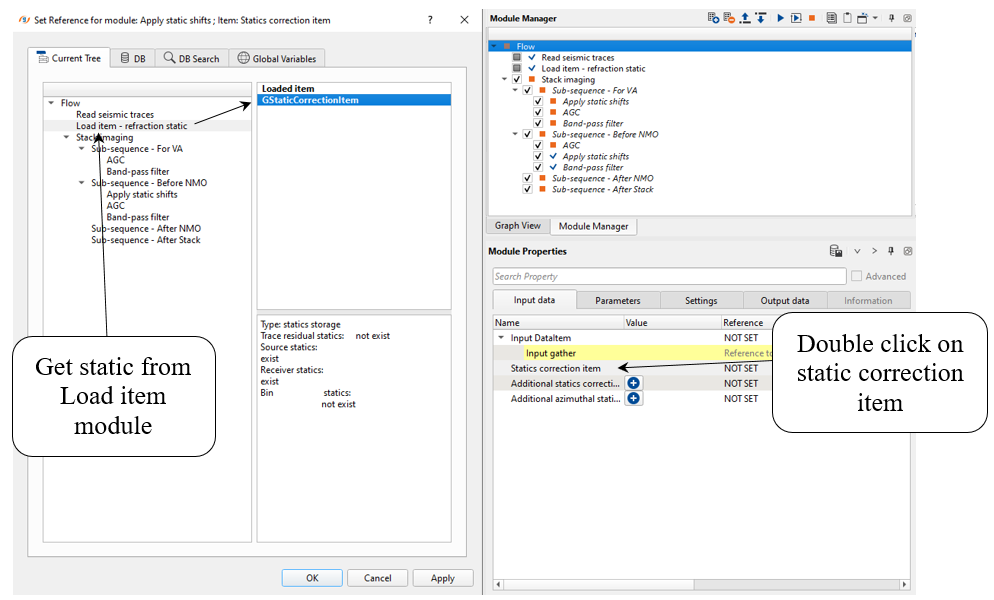

2) Load item - refraction static: load refraction static library from DB. Define an input file name Refraction_statics_:

3) Stack imaging. This module is complex interactive application for velocity analysis, creating mute function, stacking CMP gathers. Input data is gathers in any sorting, without NMO corrections. Get input data items from Read seismic traces.

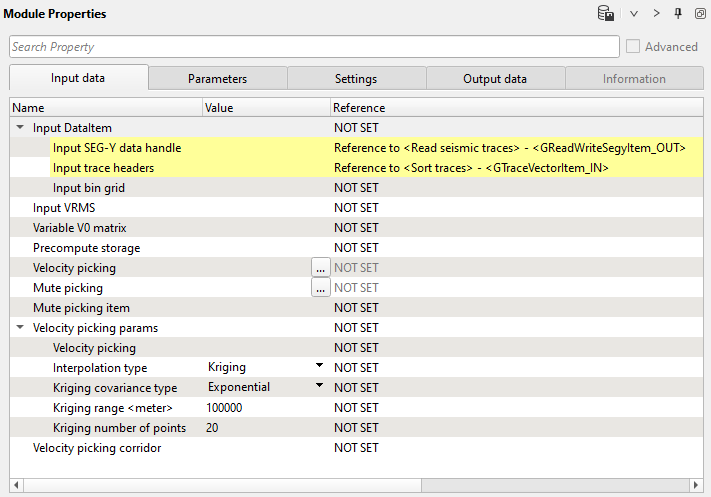

Make a reference to the Read seismic traces or any other module which has prestack seismic data as an input. This is the only mandatory reference input data requirement for Stack Imaging. Other input data items are optional.

Provide the Input VRMS in case we have an external velocity model or using a velocity model as an input gather. In case we provide the input VRMS then the we should change the Velocity usage option in the Parameters accordingly.

In case the replacement/near surface velocity V0 is variable then the user should provide the velocity matrix as an input. Accordingly, we should check the option in Velocity Analysis parameters.

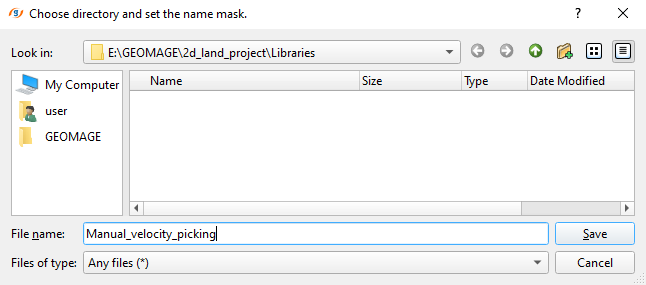

Provide a storage name for precomupting the velocities. Use in case of large surveys.

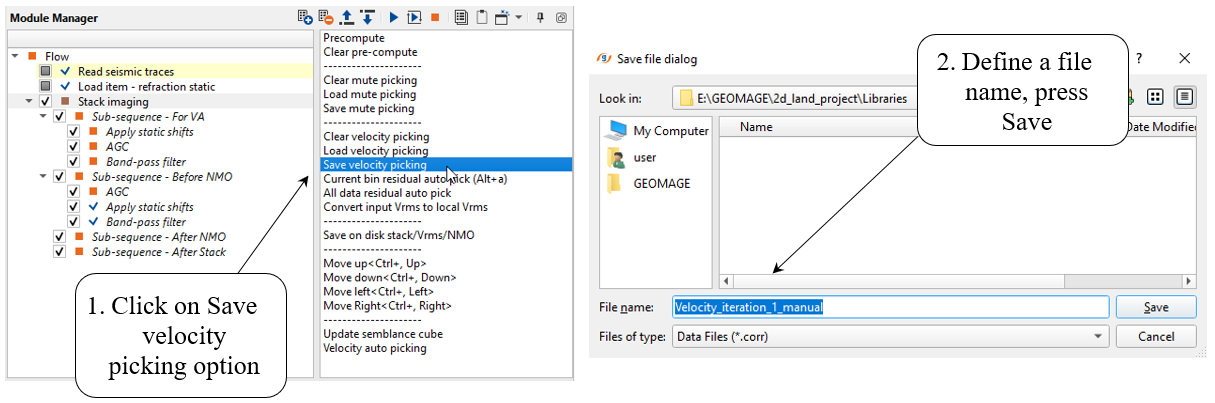

Provide the previously picked internal velocity file (if available) otherwise ignore it. Once we finished picking the velocities and saved them, then the saved path is displayed here.

This is mandatory in case the user wants to pick the velocities automatically. The user must provide the velocity corridor file.

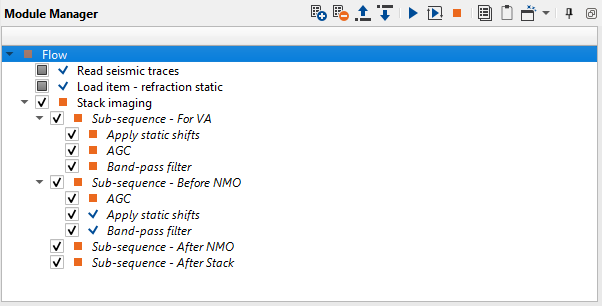

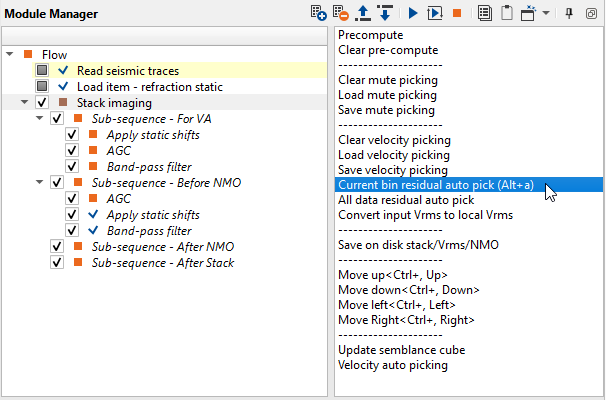

Pay attention on what is inside Stack imaging module, it is sub-sequence. Sub-sequence helps to avoid creating a separate workflow to apply an AGC or Deconvolution or other processing modules, we just simply insert those modules in the sub-sequence inside the main module. Put modules inside the sub-sequence as shown below:

•Sub-sequence - For VA: processing for velocity analysis, i.e. apply some procedures like band-pass or AGC, and then velocity spectrum is calculated;

•Sub-sequence - Before NMO: processing before applying NMO corrections to gathers, for example we can apply static corrections;

•Sub-sequence - After NMO: processing before applying NMO corrections to gathers, for example we can apply denoise procedures;

•Sub-sequence - After Stack: processing after stacking CMP gathers, for example we can apply denoise procedures or spectrum balancing.

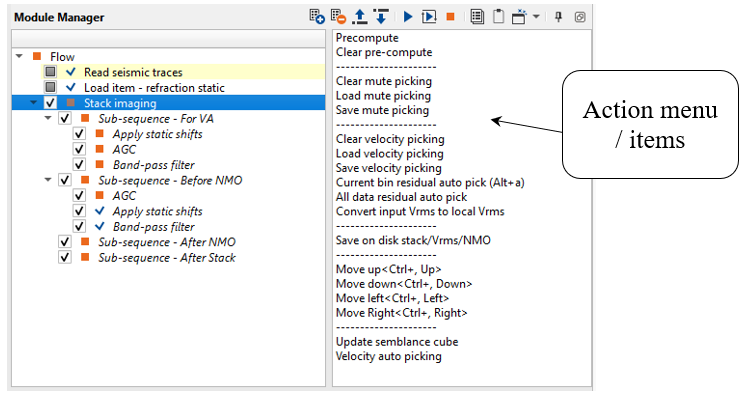

If we look at the action items menu on the right hand side of the Stack Imaging module, there are many options like loading, saving and clear libraries (velocity, mutes), auto-picking mode and other. Of course some functions are optional and we don't need to use all of them, but some of them are often used:

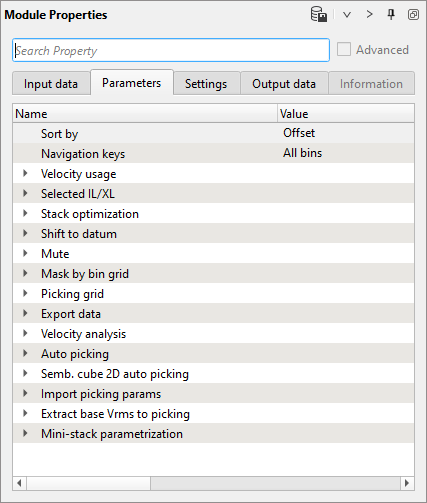

There are a lot of parameters in this module, but most of them we can keep as default in this test 2D land processing. Read parameters definition below just for common understanding:

This parameter defines how to sort the input data. Default: by offset. Upon expanding the menu, we have few options:

It determines how the user wants to navigate inside Stack Imaging to pick velocities or mutes. Here we have two options:

Net - If the user selects this option, the user have the limited ability to navigate through the data i.e., the user can go to a particular defined point only.

All bins - This option allows the user to navigate through all the bins that are available. It means, the user can select any random location( in this case bin) and pick

either the velocities or mute.

Consider only picks on current line - By default, it is unchecked. If checked, it will consider consider the velocity picks only to that particular inline/xline and

update the stack accordingly.

Use External VRMS - In case the user have the velocity information in an external format like SEGY, then the user can use this option to consider the external

velocity information in stack creation. If the user chooses this option, they must provide the Input VRMS at the Input data tab.

Use pickets - The velocities are interpolated along the stack line/crooked line. Otherwise, the velocities are interpolated using X, Y coordinates.

Selected crossline - Specify the crossline number to be created and/or pick velocities. In case of 2D data, it will be crossline.

Value threshold - By default it calculates from the input data and the user doesn't need to provide anything here. Ignore this parameter.

Recreate stack in places where picking changed - It will ONLY creates the stack where the velocity picks were changed/edited. Rest of the stack will remain the same.

GUI stack creation - We can choose whether we want to generate only an inline or crossline or both.

Show gaps on the inline - By default, it is checked. If there are any data gaps in inline/crosslines it will display them.

We can shift the data to final datum or keep it as it is (at topography). As we mentioned earlier, in g-Platform, we estimate velocities from the topography level. In Binning 2D module, we provided created a smoothing topography which is representation of the floating datum. Here we are smoothing the CMP elevations only. The source and receiver elevations remain same:

Shift to Datum - By default unchecked. If the we would like to shift the data to datum then we need to check this option and provide Datum value.

Datum(meter) - If the previous option is checked, then we should provide the Datum value to shift the data from current datum to the final datum.

This is helpful in case of 3D to crop some of the minimum and maximum offsets while creating the inline/crosslines or the volume.

Min offset mask apply - If checked, define the minimum offset for all the CMPs to crop them, means it won't be used in the final stack.

Max offset mask apply - By default, unchecked. It is similar to the Min offset mask. If checked, define the maximum offset to crop.

We can define at what interval we should pick the velocities. In case of 2D, if we want to pick the velocities at 2 km interval and the CMP

interval is 12.5 m then we need provide 160 (2000/12.5 = 160) as inline/cdp increment value or step size.

Inline/CDP increment - Provide the inline increment step size. In case of 2D, provide the CDP increment step size as explained above.

Read bins bulk size(Bins) - Define the number of bins to read in a bulk. By default 200.

This is the main component of creating the semblance display. Inside the Velocity analysis, the user should define various parameters to generate the semblance, Common Offset (CO) gather, NMO stretch factor etc.

Use variable V0(matrix) - In case the near surface/replacement velocity is varying and not constant the user can check this option to consider Variable V0. If this option is checked, the user must provide the Variable V0 matrix at the Input data tab.

Replacement velocity (m/s) - Specify the replacement or near surface velocity value for datum shift.Set this value prior to beginning of the velocity picking.

Start velocity (m/s) - Define the starting velocity value for creating the semblance.

Ending velocity (m/s) - Define the ending velocity value for creating the semblance.

Velocity increment (m/s) - Specify the the velocity increment step size. By default 50 m/s.

Semblance smoothing window (ms) - This value defines the smoothing of the semblance display. Higher window makes the semblance more smooth which is not ideal an ideal scenario but it depends on the input data quality. Default parameter value of 50ms works good.

Stretch factor (%) - This parameter determines the NMO stretch factor. By default 50. If the user changes this value then the user can to observe the changes in the Velocity analysis window (Semblance display), Current NMO Seismogram display. Once the user executes the Stack Imaging module with the updated Stretch factor then the stack will be created using user defined NMO stretch factor.

Smoothing parameter Y velocity (Samples) - Default value is 10. Define the number of vertical samples to define the velocity smoothing.

Normalization window (ms) - Default 100 ms. This parameter is used for normalization of the semblance display.

Semblance resolution - Select the type of resolution. We have 3 options, Normal (By default), Low and High. By meaning of the Low and High, it decreases/increases the semblance resolution. Depending upon the input data quality the user can select the appropriate semblance resolution.

Show CO gather - By default unchecked. If the user wants to display the Common Offset (CO) gather then check this option.

Semblance improvement type - By default Average. Select the appropriate type from the available options to adjust the semblance calculation to improve the semblance display.

Super gather radius inline (VA and CO) - Define the super gather radius in inline direction

Super gather radius crossline (VA and CO) - Define the super gather radius in crossline direction

Show CO gathers - If this option is checked, it will display the Common Offset gathers with different options.

CO with constant step - Displays the CO gathers with a constant CO offset step size. The step size should be defined at CO radius (meter).

CO with original geometry - It will display the CO gathers at original geometry.

CO gather abs offset sort - By default unchecked. If checked, it will sort the CO gathers in absolute offset.

----------------------------------------------------------------------------------------------------------------------------------------------------------

The next two groups of parameters are used for auto-picking, so don't use it on current step (manual picking).

We will discuss it in the second iteration of velocity analysis (automatic picking).

----------------------------------------------------------------------------------------------------------------------------------------------------------

This part of Stack Imaging module provides auto picking. We should provide the following parameters.

Use semiautomatic picking - by default it is unchecked. If it is checked, it will adjust the user picked velocities to the maximum semblance value.

Min velocity deviation (%) - percentage of minimum velocity deviation from the input 100% velocity.

Max velocity deviation (%) - percentage of maximum velocity deviation from the input 100% velocity.

Max time deviation (ms) - maximum acceptable time deviation. It's time window for single auto-picking.

Inline/cdp start autopick - starting inline (in case of 3D) or CDP (in case of 2D) number for auto-picking.

Inline/cdp step autopick - this parameter is for residual auto picks only. Provide the inline/CDP step size.

Semblance threshold - when semblance calculation is done, it is either 1 or 0. If the correlation between any two given points is 1 then we have a very good semblance otherwise we have no semblance which means 0. In the case of automatic velocity picking, when the user provides a semblance threshold value of 0.5, then it will ignore picking the velocities anything below 0.5 semblance threshold.

Inline/CDP step autopick - this is the main parameter at what interval the automatic velocity picking should be done. If user provides the Inline/CDP auto-picking step a= 25, then it will automatically pick the velocities at every 25-th Inline/CDP.

Aperture - number of neighboring BINs to analyze the semblance for the current picking location.

Slope (%) - this parameter relates to the reflectors. If the reflectors are straight then the slope can be less otherwise the slope can be a higher value.

Multiplied super gather radius inline - It is number of bins used to analyze the semblance and multiplied by the user defined factor. Higher multiplication factor means less events for auto picking. The higher multiplication factor stabilizes the semblance laterally.

Time smoothing window (ms) - Provide the smoothing window smoothing velocity function. The larger smoothing window the smoother velocity function.

Time step (ms) - Provide the time step at what interval the automatic picking should take place.

Magnet picking points to geometry - By default, it is checked. The main objective of this parameter is to detect or select the exact Inline/CDP/Cross line location in the location map or location map inline/crossline. In case the user picks somewhere on the location map but not exactly at the desired position, based on the

Magnet max distance, it will automatically searches and selects that position on the location map. Magnet max dist (meter) - Define the magnet maximum distance to search for the point.

This parameter is directly related to Input VRMS in Input data tab. When the user reads the external velocity or internal velocity by gather, it will extract the information based on the following parameter values.

Geometry step (meter) - Provide the geometry step size to convert/extract the input Vrms into internal velocity format.

Mini-stacks are also knows as CVS (Common Velocity Stacks). These are very useful in helping the user to get an idea about the overall velocity range and it's trend. There are few parameters needs to be filled to create these Mini-stacks in g-Platform. By default, the Mini-stacks display is not available in Vista Groups-> 2D groups or 3D groups. The user must separately add them.

Apply sub-sequence processing - By default unchecked. If checked, it will automatically apply the sub-sequence processing steps involved in VA/Before NMO.

Create mini stacks - By default unchecked. In order to create the Mini-stacks, the user must check this option to generate the Mini-stacks.

Mini-stack traces radius - Define the number of traces (CMPs) are considered in creation of the Mini-stacks.

Orientation - Choose the Mini-stack orientation. By default, Inline. The user can choose inline or crossline from the drop down menu.

Mini-stack picking method - When the user wants to pick the velocities on Mini-stacks, the user have two options to choose from.

Constant velocity stacks - By default, this is the option wherein the stacks were created using a constant velocity defined by user at Velocity analysis parametrization.

Current interpolated stacks - The user can to pick the velocities on interpolated stacks.

Mini-stack velocity increment (m/s) - Provide the velocity increment. From one Mini-stack panel to another Mini-stack panel, the velocity varies from the user defined value. This option is active when the Mini-stack picking method is Constant velocity stacks.

Maximum velocity deviation radius (%) - Define the maximum velocity deviation. This option is active when the Mini-stack picking method is Current interpolated stacks.

Velocity deviation increment (%) - percentage of minimum velocity deviation from .

------------------------------------------------------------------------------------------------------------------------------------------------------

Velocity picking within the Stack Imaging module is not corrected to final datum. In g-Platform, we pick velocities on the topography and shift it to the final datum if necessary. In that case, we should use Shift to datum option inside the Parameters tab. Also we can perform this task by adding the Shift to datum module under the Sub-sequence - After stack. The velocities are still at Topography. Only the stack shifted to Final datum.

During NMO application, the source and receiver elevation statics are calculated automatically by shifting to CMP (Bin) elevation, and applied to the seismic trace

-----------------------------------------------------------------------------------------------------------------------------------------------------

So, now look though the parameters that we are going to change. Pay attention on super-gathers and mini-stacks: increase number of CMP gathers for semblance and turn on mini-stacks calculation:

Open all vista groups and mini-stacks (do it manually, by default it is not in vista groups). Look at the picture below, you should have something similar, it is default visual setting and windows configuration. Make some changes of visual settings, open view properties of Velocity analysis and Mini-stacks: change layers visibility, colors, points size, etc.

Perform velocity picking on current CMP point: pick on semblance or mini-stacks section. To pick velocities, click on the velocity analysis window panel. It will come up with three lines. The two yellow lines are basically the Velocity corridor and the middle line is the Current velocity pick trend (input velocity 100%). Once we start picking the velocities, a red line appears which is the Interval velocity.

For removing any picks any bad picks: should hold RMB and draw a polygon. Whatever is falling inside the polygon will be removed.

For editing any picks: click on the area near a particular pick and it will be moved to a new position:

Configure all vista windows as you prefer and make velocity picking for several CMP points. You can remove some of the extra vista windows and use them if necessary. For example, there is a list of vista windows that we can use for current 2D velocity analysis: Velocity inline, Stack inline, Location map, Mini stacks, Velocity analysis, Current NMO seismogram. As we are picking more locations, Velocity inline keeps updating however we still can't see the Stack inline. To generate the Stack inline, we should execute the Stack Imaging module either by double clicking on Stack Imaging module or press the Execute module

icon.

Depending on the user's parameters, we can pick the velocities either randomly by selecting on the location map or as per the picking grid which was defined in the Parameters tab. To move left, right, up & down, one can look at the action items menu and use the short cuts to move around.

Since we have picked stacking velocity manually, there is an option for performing residual correction. For example, if some pick was picked inaccurate and should be corrected. Residual picking is NOT auto-picking mode. We will use another option for auto-picking in the further chapter. Go to the Action items (menu) and choose the option Current bin residual autopick for the current bin position only. Then use All data residual auto pick option for the entire data:

Press the Execute module

icon again. Now we have a new stack, velocity and mute function for stack. But stack is on stack on floating datum (after NMO applying inside the module), but if we need to shift it to the final datum (constant) check the datum parameter. You can do this test with datums, compare two stacks: floating datum vs constant. Save final velocity on disk: use action menu-> Save velocity picking -> define a file name for velocity pick file:

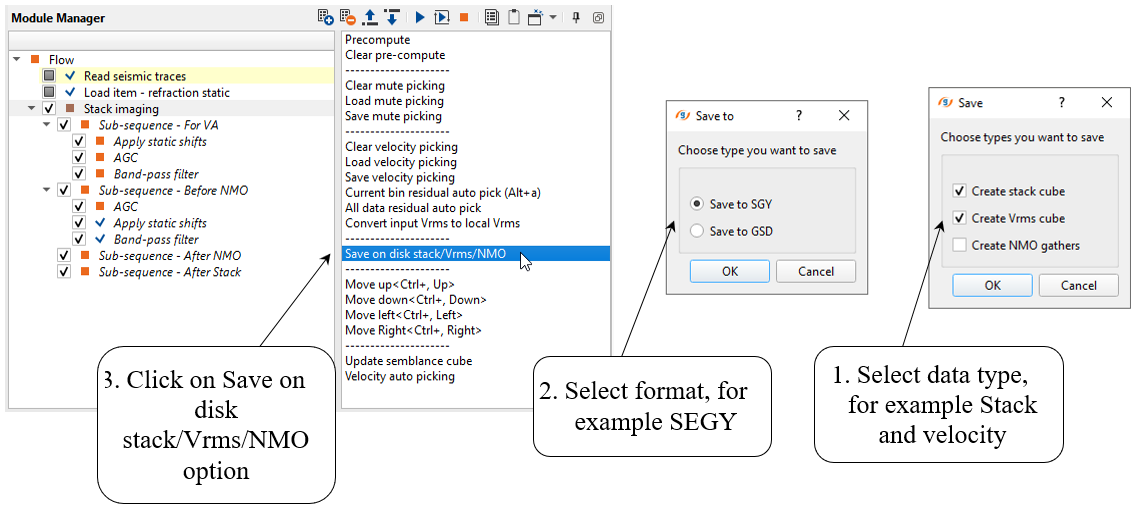

Optionally, we can save resulting stack, velocity and NMO gathers in SEGY format on a disk: choose the option Save on disk stack/Vrms/NMO from the action menu. Click on this option, a pop-up window opens with the default option as Save to SGY. Click OK. Now another pop-up window opens up with different options. There we can select one or all of them and click OK. Finally a file browser window opens and here we should provide a file name. Depending on the choice of our selection, it will suffix the names to the respective data type with an extension of SEGY to the data set.

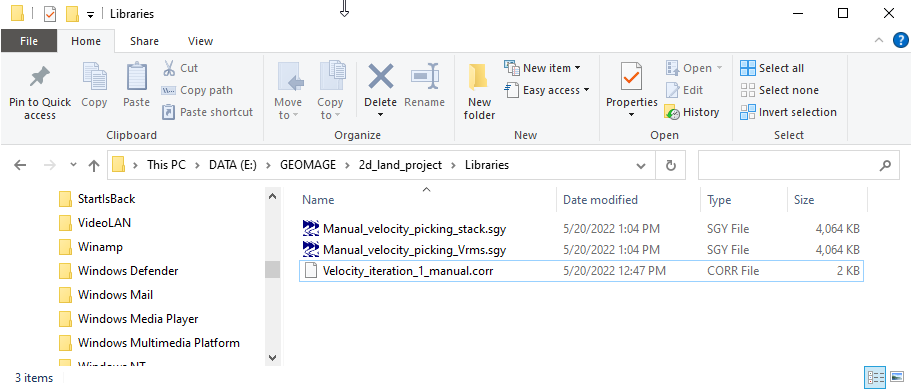

We finished manual velocity picking and saved result on the disk. Now we can move on to the next chapter:
