Binary Headers

Top  Previous  Next



By using the View SEG-Y module, we can to change the Binary headers also.



Module name                View SEG-Y

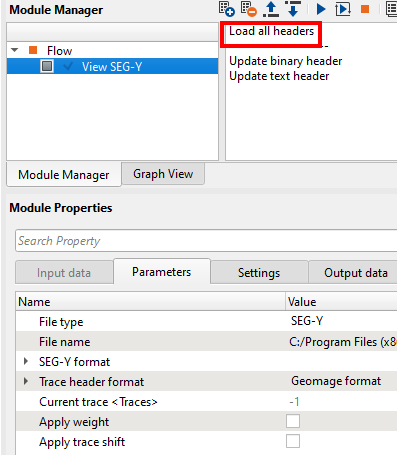

clip0257_r



Read the SEG-Y file using View SEG-Y module and select the Load all headers so that all headers can be read and loaded. Launch Vista items and look for the Binary headers window.



To change the Binary headers

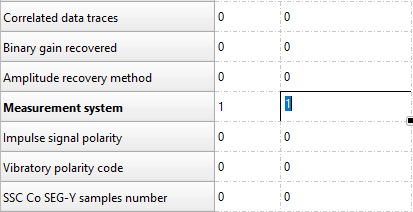

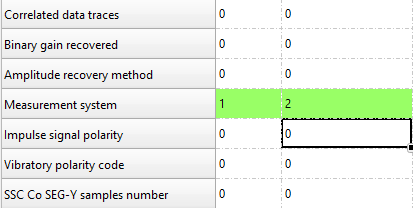

Double click on the desired row to edit. It is now able to edit the row. Type IN the desired number. Now the back ground color changes.



clip0262_r clip0263_r

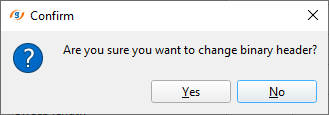

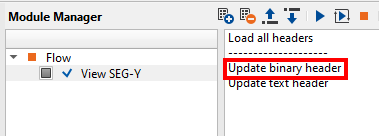

Click on Update binary header option from the action menu. It will ask for the confirmation, click Yes and check the result



clip0264_r clip0265_r
