Regularization 2D - midpoint consistent

Virtual 2D geometry by common offsets

Theory

Midpoint Consistent Regularization is a seismic pre-processing step that ensures the input data are uniformly sampled in the midpoint domain—i.e. every Common Midpoint (CMP) bin has the same, regularly spaced set of offsets (or traces). By enforcing consistency in midpoint and offset sampling, we eliminate irregular fold and offset coverage, which greatly improves the quality of velocity analysis, stacking, and migration.

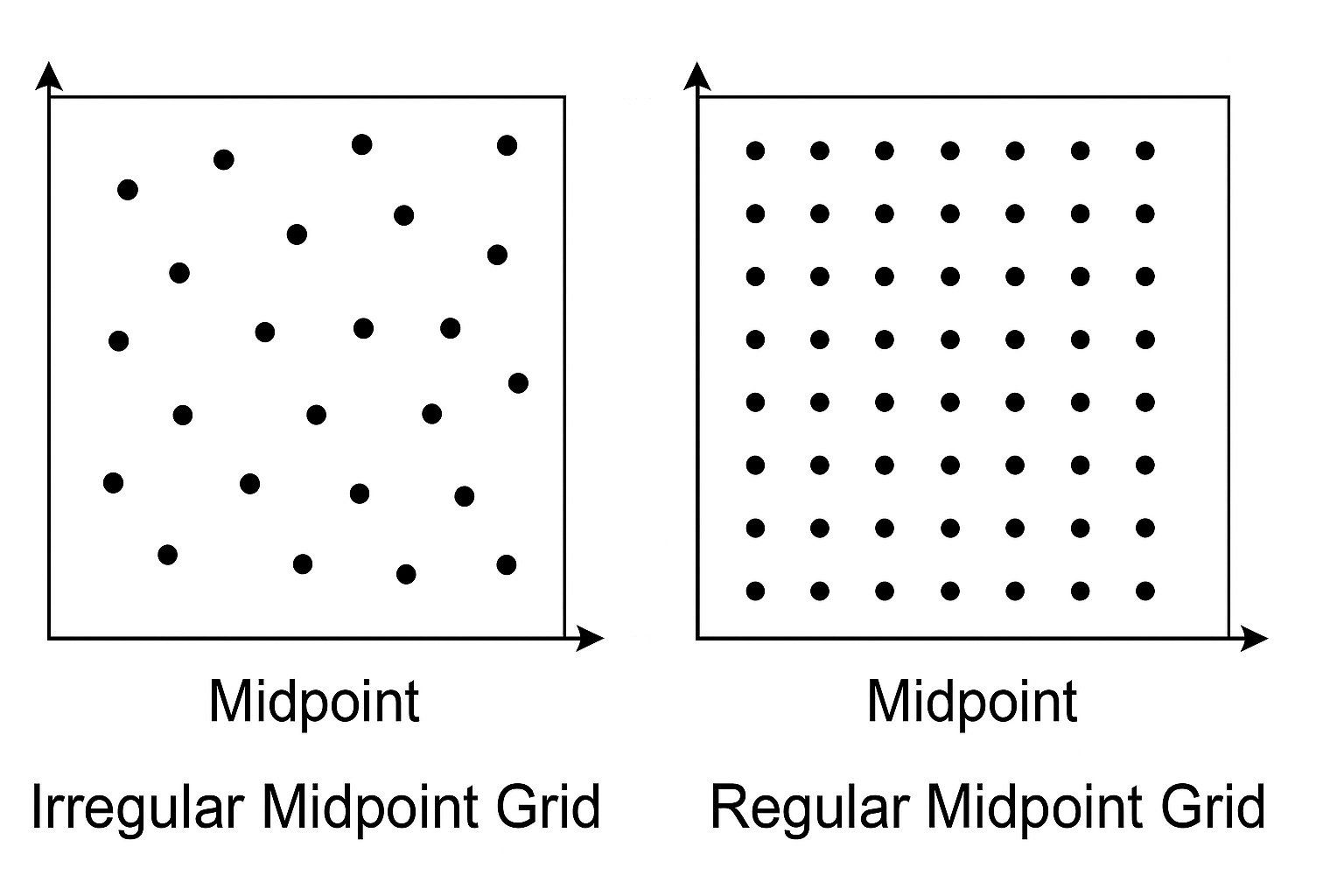

Real-world surveys often have uneven source/receiver spacing due to obstacles, equipment limits, or terrain. Stacking assumes uniform midpoint sampling. Irregular data reduces stacking efficacy and introduces noise. Wave-equation migration algorithms require regular input grids to avoid numerical errors. Regularization ensures amplitude-vs-offset (AVO) and amplitude-vs-azimuth (AVAz) signals remain undistorted.

This procedure creates regularized geometry based on midpoint. For each given midpoint, it creates virtual geometry with regularized offsets with user defined offset step size.

Input data

Crooked line

connect/reference to Output trace headers/Output stack line of Binning 2D.

Parameters

Offset first

provide the starting or minimum offset (absolute value) to regularize

Offset last

provide the maximum or last offset (absolute value) to regularize

Offset increment

specify the offset step size or increment.

Settings

Skip

By default, FALSE(Unchecked). This option helps to bypass the module from the workflow.

Output data

Trace headers

generates offset regularized trace headers

Information

Traces count

displays the total number of traces

Bins count

displays total number of CMP/CDP.

Examples

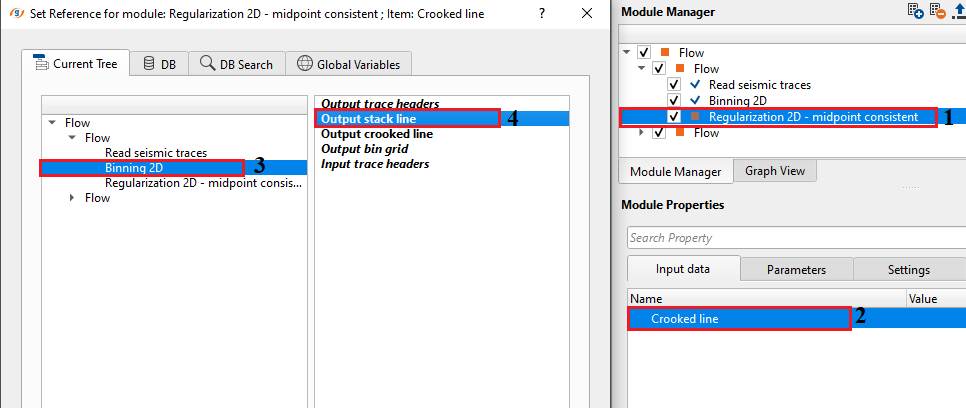

In this example workflow, we are regularizing an onshore crooked line (2D). Make the connection/reference to Output stack line of Binning 2D to Crooked line.

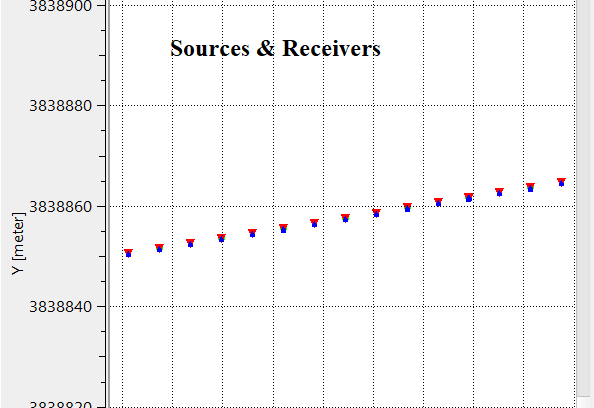

Specify the appropriate parameters as per the input data and execute the module. It generates location map as a vista item besides Output trace headers as a output item.

Actions

There are no action items available for this module so the user can ignore it.

Video lesson

YouTube video lesson, click here to open [VIDEO IN PROCESS...]

Yilmaz. O., 1987, Seismic data processing: Society of Exploration Geophysicist
