Create Project

Since you have installed g-Platform system on your workstation, the next step is creating a project. Open g-Platform by double mouse click on g-Platform icon in your desktop. g-Platform is the main window where the user creates the project database, work flows, project data etc. Once the project creation part is over, the user needs to create the work flows. This is where we will be heading into g-Navigator which is part of the g-Platform software suite. Inside the g-Navigator you will build the workflow, assign the parameters, visualize the data etc.

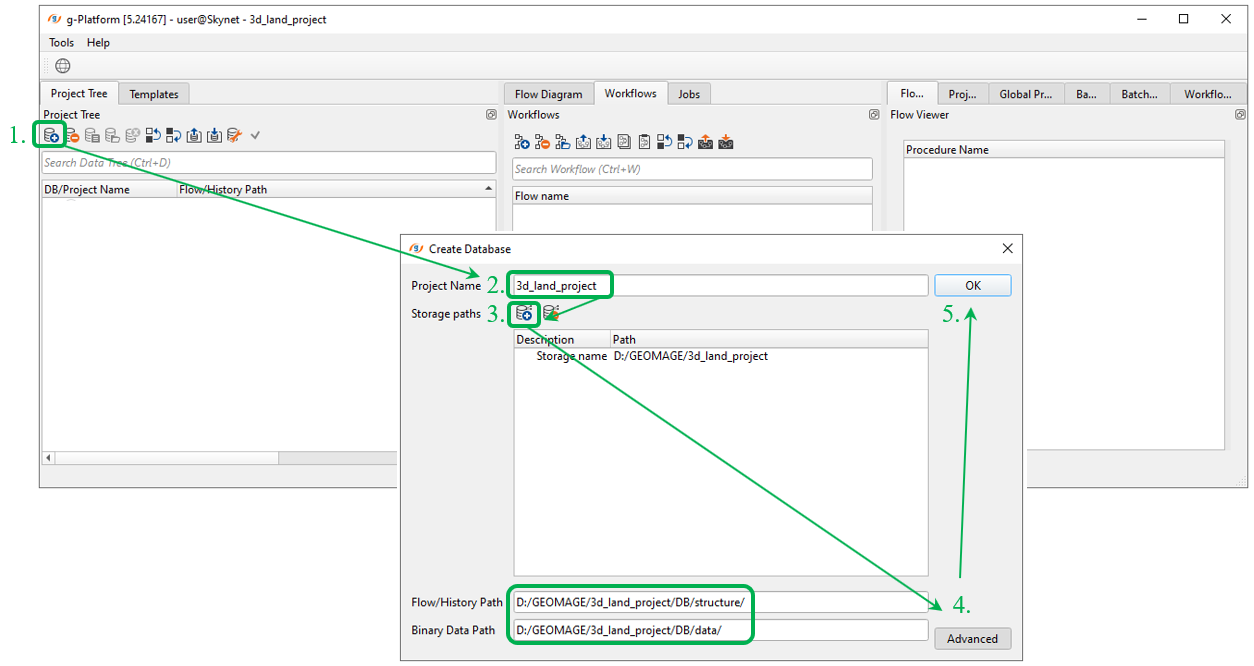

Then in Project Tree tab click on

icon (1), write a project name 3d_land_project (2), add storage path (3)(4) and change default paths for work flows (5), history and binary files, because it is better to keep all projects files together (except big seismic files):

-------------------------------------------------------------------------------------------------------------------

Notice that versions of the g-Platform are used in this tutorial: 5.24167, 5.24374, 5.24495, so all parameters, options, visual QC windows and results may be different from your version.

--------------------------------------------------------------------------------------------------------------------

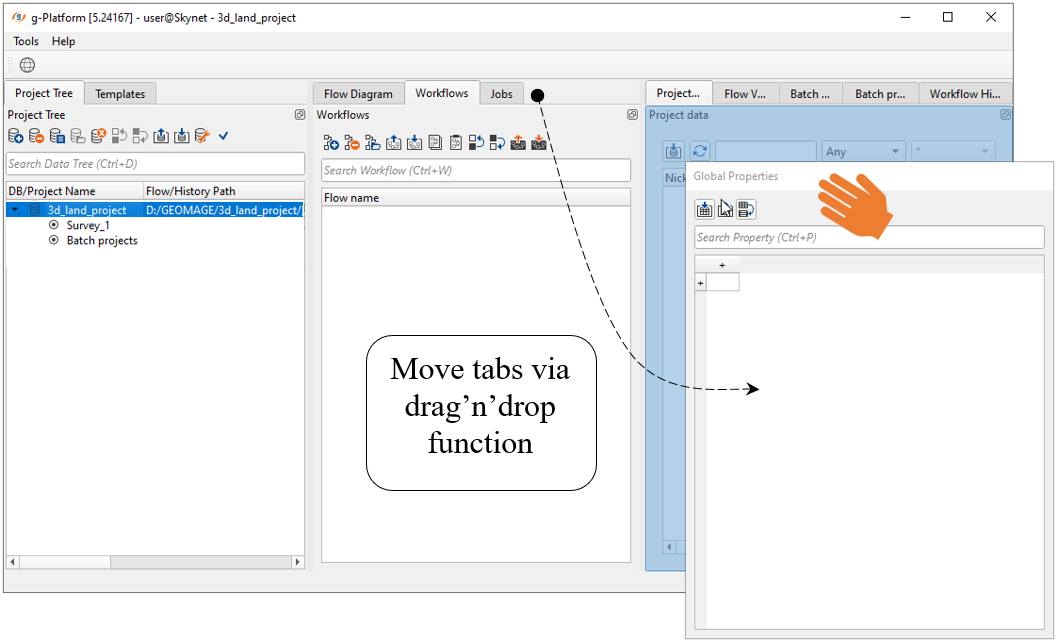

Our project is ready for use and we can change some user settings, so let's change tabs in the main g-Platform windows via drag 'n' drop function. Double click on the project to open it (make it active).

Move workflow window into the center and other windows tho right parts of the browser. This kind of tab positions allows to ease access to the most used windows during processing: projects, workflow list and workflow 's inside (modules and parameters):

Project Tree	The place where we create the project and assign the data paths;
Work flows	Giving a name to a workflow;
Global Properties	In case of batch processing, we define the global properties in this tab. We have the option to import CSV files;
Project Data	All the project data will be available for quick access. The user can search the data set using the search option at the top;
Flow Viewer	This display the contents/modules of a workflow;
Flow Diagram	This is a flow chart that is automatically created while the user creating the workflow. It's kind of a graphical representation of the flow;
Workflow History	It records the changes made during the workflow build up and keep a copy with a revision ID;
Templates	Work flows were already prepared for the user convenience. The user can copy/paste these templates and start working on it;
Batch prepare	This is useful when we are doing multiple (100's of) lines of processing;
Batch state	This shows the status of the batch. Whether the batch is in a execution state or any errors etc;
Jobs	It will display the current running jobs in the batch mode as well as the running g-Navigator sessions.
