Some of the modules in g-Platform processing suite requires a velocity model. In order to create one, the user should use the module "Create velocity model"
Module name Create velocity model

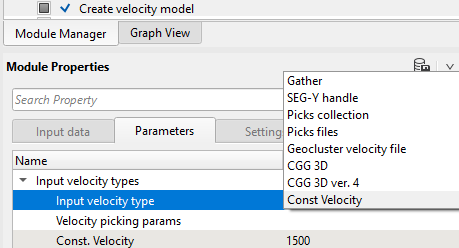

It got many options to read the external or internal velocity formats. If we look at the Parameters tab of the Create velocity model module, we have few options in the Input velocity type
From the above image, we can see that it accepts SEG-Y, internal as well few industry standard velocity formats. Picks collection and Picks files are both internal velocity format files. In the Stack Imaging, we can save the velocity files in .corr format and call them by using "Picks files" option.

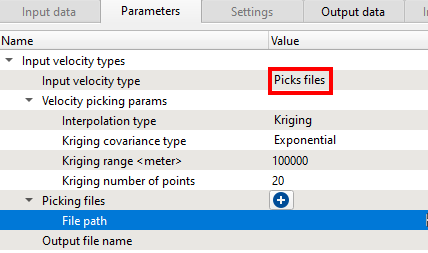

Picks Input the saved internal velocity file

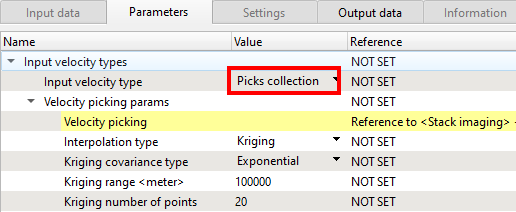

Picks collection If the user selects the picks collection as input velocity type then they can connect to the Stack Imaging module and select "velocity picking" option
