Velocity Analysis

Top  Previous  Next



We have a module called "Velocity analysis" in g-Platform which can be used for various purposes. The primary use is



To pick the velocities (even though we won't recommend it)

Place before and after Radon analysis module to check the multiple attenuation on the velocity semblance.

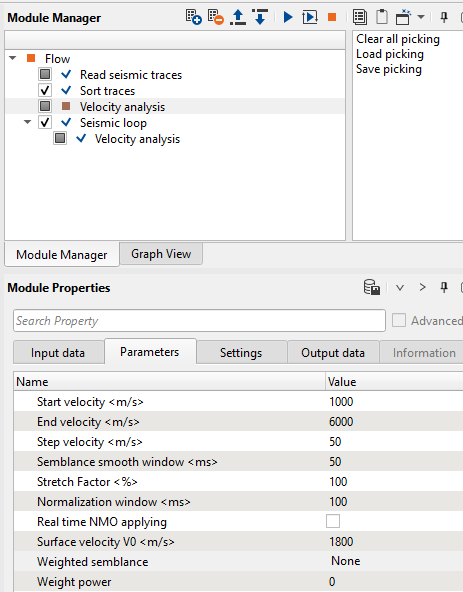

Module name                Velocity analysis



clip0142 clip0232_r

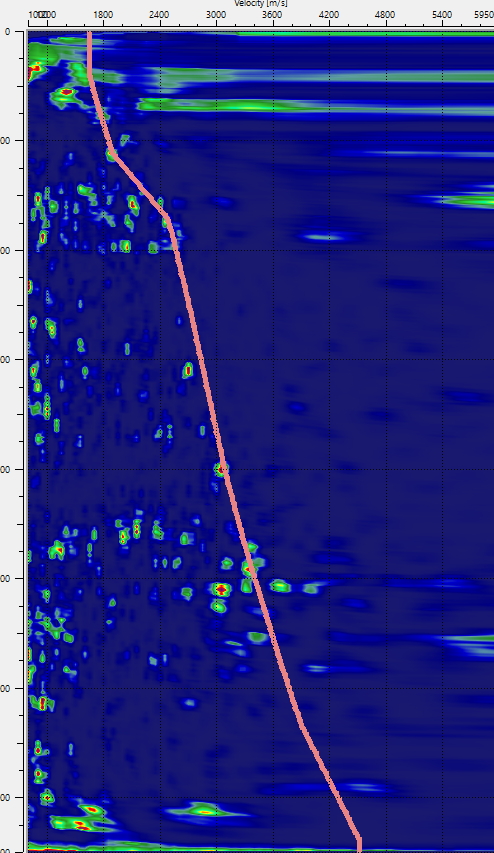

Similar to Stack Imaging, the user can pick the velocities on the semblance and save the velocity picks from the "Save picking" action item menu.
