Pre Stack Depth Migration via Kirchhoff algorithm (PSDM stage). Seismic data sets are migrated as separated offset panels (cubes).
Kirchhoff depth migration is a fundamental algorithm in seismic data processing used to reconstruct subsurface images by mapping recorded seismic data to their true spatial locations in depth. The method is based on the Kirchhoff integral solution to the wave equation and assumes that seismic waves can be treated as high-frequency approximations propagating through the subsurface. It requires an accurate velocity model and the calculation of travel times for each source-receiver pair. The ail difference from similar module Kirchhoff PreSDM(Offset mode) - file in/out - migration TT is offset mode, i.e. execution performs by each offset panel independently.
The algorithm uses the Kirchhoff integral equation to represent the seismic wavefield:
where:
• u(Xs, Xr, t) is the recorded seismic data,
• G(X, Xs, t) and G(X, Xr, t) are Green's functions describing the travel time from the source (Xs) and receiver (Xr) to the subsurface point (X),
• m(X) is the reflectivity model being reconstructed.
Kirchhoff migration involves summing the contributions of seismic energy along isochron surfaces, defined by the travel time equation:
where T(X, Xs) and T(X, Xr) are the travel times from the subsurface point to the source and receiver, respectively. The reflectivity at a given point is determined by stacking the seismic amplitudes along these surfaces. This process is computationally intensive, requiring accurate travel-time tables and an efficient summation scheme.
Kirchhoff depth migration is particularly effective in areas with relatively simple subsurface structures or where a good initial velocity model is available. The algorithm's flexibility allows it to handle varying offsets and irregular acquisition geometries. However, its accuracy depends on the resolution of the velocity model and the correct computation of travel times, making iterative velocity model updates a crucial part of the workflow.

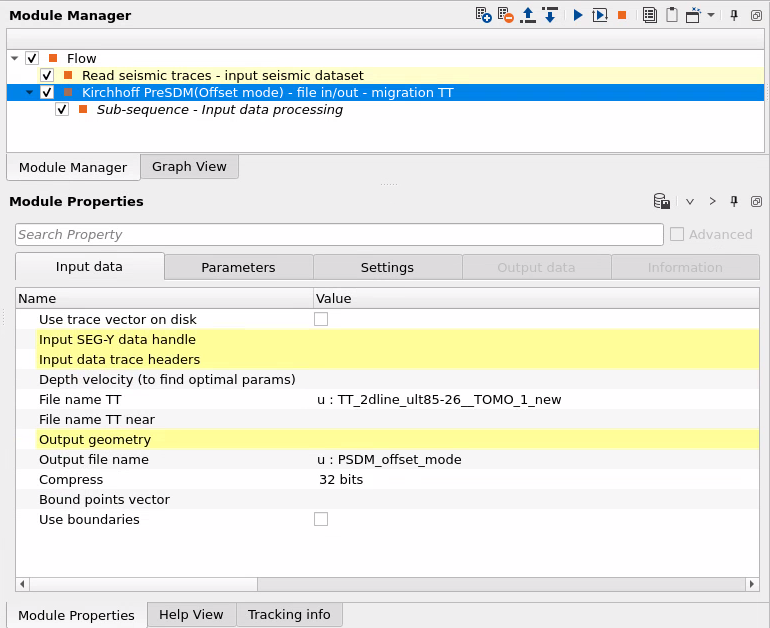

The module requires travel time file as input data, therefore please be sure that it was calculated before via Time table calculation for tomo update module.
Use trace vector on disk - use this option in case trace header data (vector) is large for unloading it to the RAM. Thererore all trace headers will be readed wrid disk without using necessity to use RAM.
Input SEG-Y data handle - connect to the input SEG-Y data handle, input seismic is pre-migration regularized gathers or COMF enhanced gathers. Without NMO-corrections.
Input data trace headers - connect to the input trace header iteim, input seismic is pre-migration regularized gathers or COMF enhanced gathers. Without NMO-corrections
Input trace data handle - it works in case of using option Use trace vector on disk (is located here in the Input data tab).
Depth velocity (to find optimal params) - optional, it is used only for get datum info from trace headers.
File name TT - input travel time (time table) file.
File name TT near - input Near travel time (time table) file. Near is special option in TT (see Time table calculation for tomo update).
Output geometry - desired geometry for an output migrated seismic data (CIGs). You can use input stack, gathers, velocity as a reference.
Output file name - file name for output CIGs.
Compress - compression format for output CIGs: 32 bits, 16 bits, 8 bits.
Bound point vector - connect input polygon item for limitation area of calculation. Also, enable Use boundaries parameter.
Use boundaries - enable Bound point vector parameter.

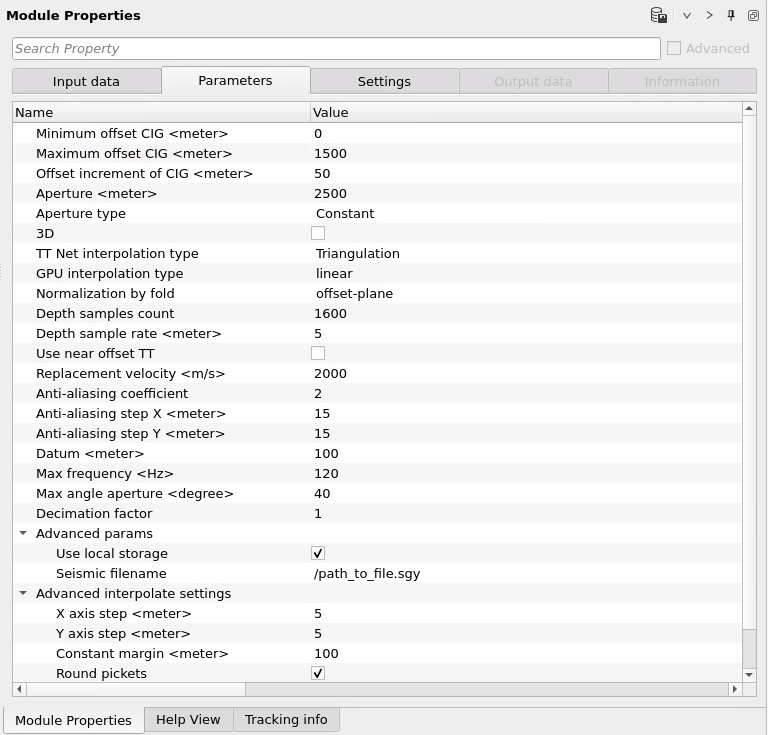

Minimum offset CIG - provide the minimum offset in meters for generating the CIG output.
The smallest source-receiver offset (in meters) that will be included when building the output common-image gathers (CIGs). Traces with offsets below this value are excluded from migration. Default is 0 m. Set to a value greater than zero to suppress near-offset noise or to focus on a specific offset range for AVO analysis.
Maximum offset CIG - maximum offset in meters for generating the CIG output.
The largest source-receiver offset (in meters) to include in the migrated CIGs. Default is 3000 m. Traces with offsets beyond this value are discarded. Set this to match the maximum usable offset in your survey, taking into account muting applied during preprocessing. Including excessively far offsets can introduce migration noise and stretch artifacts.
Offset increment of CIG - step size of offset increment.
The width of each offset panel (in meters) in the output CIG volume. Default is 100 m. Traces whose offsets fall within each [min, min+step) window are stacked into a single offset panel. Smaller increments produce finer offset sampling (more panels, larger output file) and are better for detailed velocity analysis. Larger increments reduce output volume but may smooth AVO character.
Aperture - migration aperture (half of the distance!).
The half-aperture (in meters) of the Kirchhoff migration operator — the maximum horizontal distance between an output image point and the source or receiver location considered during the summation. Default is 3000 m. Note that the value entered is the half-distance, so a value of 3000 m means traces up to 3 km away from the image point are summed. Larger apertures capture more steeply dipping events and improve continuity of dipping reflectors, but increase computation time. Set this to approximately the maximum dip * target depth / velocity to balance image quality and run time. This parameter is active only when Aperture type is set to Constant.
Aperture type - select either Constant or Depth variant (If the user chooses Depth variant then they should provide different apertures at different depth intervals).
Controls how the migration aperture varies with depth. When set to Constant (default), a single aperture value (set in the Aperture field) is applied at all depths. When set to Depth variant, the aperture is defined by a table of depth-aperture pairs, allowing the aperture to grow with depth (reflecting the increasing velocity and offset requirements at depth). Use Depth variant for surveys with significant velocity variation to optimize both image quality and run time at each depth level. Default depth-aperture pairs in the table are: 0 m → 100 m, 500 m → 500 m, 1000 m → 1000 m, 2000 m → 3000 m, 3000 m → 5000 m.
3D - In case of 3D, check this option.
Enable this option when migrating 3D seismic data. When checked, the Kirchhoff summation operator uses full 3D geometry, collecting contributions from traces in all azimuthal directions around each image point. For 2D surveys, leave this unchecked (false by default) so the operator is restricted to the 2D inline plane, which reduces memory usage and run time. Using 3D mode on a 2D dataset will produce incorrect results.
TT interpolation properties - travel time net interpolation type. We have two options. Bilinear and Nearest. If there are two traces within a constant grid spacing and if any bin falling in between these two traces then the user can select Bilinear option to do the interpolation. The interpolation is simply a linear one. If the user chooses Nearest then the trace which is nearest to the bin will be considered in the interpolation.
Interpolation method :
Triangulation - triangulation interpolation is a mathematical method used to estimate values at unknown points. The method divides the spatial domain (e.g., depth slices or grid cells in the velocity model) into a network of non-overlapping triangles (in 2D) or tetrahedra (in 3D), where the vertices represent points with known travel times. Within each triangle or tetrahedron, the travel time at an unknown point is interpolated linearly using the known travel times at the vertices. The interpolation assumes that the travel time changes linearly across the triangle or tetrahedron.
Bilinear - bilinear interpolation is a simple and fast method used to estimate travel times at unknown points within a regular 2D grid based on the travel times at four surrounding grid points. It assumes that the travel time varies linearly along both the X and Y directions.
Nearest - nearest-neighbor interpolation is the simplest method for estimating travel times at unknown points. It assigns the travel time of the closest known data point to the unknown point without considering gradual changes or trends between data points.
Normalization by fold - depending on the option, normalization of the amplitudes takes place. For example if the user selects the "trace", then it will calculate the number of curves/wavefronts intersect that particular trace and accordingly it will normalize the amplitude of that particular trace. Similarly if the user chooses "sample" then for each sample how many wavefronts intersected that particular trace at that particular sample and normalizes the amplitude.
Depth samples count - specify the number of depth samples. i.e. up to what depth we want to migrate the data with respect to depth sample.
The total number of depth levels in the output migrated cube. Default is 1000. The maximum imaging depth equals Depth samples count multiplied by the Depth sample rate. For example, 1000 samples at 5 m/sample produces a depth image from 0 to 5000 m. Increase this value to image deeper targets; decrease it to reduce output file size when shallow targets are the focus.
Depth sample rate - depth sample rate (for example if = 5 , means that depth migration will be performed with 5 meters vertical accuracy).
The vertical distance (in meters) between consecutive depth samples in the output image. Default is 5 m. This is the vertical resolution of the migrated depth cube — finer sampling (smaller value) resolves thin-bed features more accurately but increases output file size. The total imaging depth is Depth samples count × Depth sample rate. A typical choice is 2–5 m for shallow high-resolution surveys and 5–10 m for deeper exploration targets.
Use near offset TT - In case we would like to image the near offsets only then they can check this option. For this, we should provide the near offset Time travel tables in the input (File name TT near). In such cases, we should calculate the travel times for near offsets only.
Replacement velocity - provide the replacement velocity information.
The constant velocity (in m/s) assumed in the near-surface layer between the datum plane and the shot/receiver elevations. Default is 1500 m/s. This velocity is used to apply a datum static correction: the migration operator shifts traces from the actual recording datum up (or down) to the flat datum plane using this velocity. Set this to a value representative of the near-surface velocity at your site — for land data this is typically the weathering or replacement velocity determined from uphole surveys or refraction analysis. An incorrect replacement velocity will introduce systematic depth errors in the migrated image.
Anti-aliasing coefficient - is a parameter used to prevent aliasing artifacts during the migration process, particularly when data is sampled at a resolution that is insufficient to accurately represent high-frequency wavefields. Aliasing occurs when higher-frequency components are incorrectly reconstructed as lower frequencies due to undersampling, which can distort the final seismic image. The anti-aliasing coefficient helps mitigate this issue by applying frequency-dependent filtering during the migration process. Choose between 0 and 1. Zero means no anti-aliasing.
Anti-aliasing step X - antialiasing bin step in X direction, increase bin size to increase antialiasing effect.
The spatial bin size (in meters) used by the anti-aliasing filter in the inline (X) direction. Default is 15 m. Together with the Anti-aliasing coefficient, this controls how aggressively the migration operator low-pass filters data as a function of dip angle in the inline direction. A larger step size increases the anti-aliasing effect (more filtering) at the cost of suppressing steep dips. Set this to approximately the bin spacing of your output grid in the X direction.
Anti-aliasing step Y - antialiasing bin step in Y direction, increase bin size to increase antialiasing effect.
The spatial bin size (in meters) used by the anti-aliasing filter in the crossline (Y) direction. Default is 15 m. Set to the bin spacing of your output grid in the crossline direction. For 2D surveys, this parameter has no effect. Matching the step to the actual output bin size ensures the anti-aliasing filter is calibrated correctly for the output grid geometry.
Datum - Provide the datum information. As we mentioned at the beginning of this manual, unlike the PreSTM where we migrate the data from the topography, here we need the datum information in order to do the depth imaging.
The flat reference elevation (in meters) to which all traces are statically shifted before migration. Default is 1100 m. In depth migration, the datum acts as the starting surface from which the migration operator propagates energy downward. Set this to a value near mean sea level (0 m) for marine data, or to the average surface elevation of the survey area for land data. Using the correct datum is critical: an incorrect datum shifts the entire migrated image vertically in depth. The replacement velocity is used to apply the time-domain static shifts between source/receiver elevations and this datum.
Max frequency - the maximum frequency to include the imaging process.
The upper frequency limit (in Hz) used in the rho-filter (anti-derivative filter) applied as part of the Kirchhoff amplitude correction. Default is 120 Hz. This value should match or slightly exceed the highest signal frequency in your data. Setting it too low will over-smooth the migrated image; setting it too high will amplify high-frequency noise. Use the frequency spectrum of your pre-migration gathers to guide this choice.
Max angle aperture - the maximum angle for migration operator.
The maximum reflection angle (in degrees) relative to vertical that the Kirchhoff migration operator will image. Default is 90°. Traces contributing to a reflection angle greater than this threshold are excluded from the summation. Reducing this angle (for example, to 45–60°) suppresses migration noise from steeply dipping events and can improve signal-to-noise at the cost of limiting dip imaging capability. Use the full 90° range unless noise or aliasing from steep dips is a problem.
Decimation factor - this will be helpful while doing the testing to optimize the parameters and for quick turn around time.
An integer factor by which the input trace count is decimated before migration. Default is 1 (use all traces). Setting this to 2 uses every other trace, 3 uses every third trace, and so on. Use a value greater than 1 during parameter testing to reduce run time — migrating a sparse subset of traces gives a quick preview of image quality to validate aperture, datum, and anti-aliasing settings before committing to a full-dataset run. Return to 1 for production migrations.
Advanced params
Use local storage - This option is useful when the work flow executed in a cluster environment where we can assign save the output in local disk for better I/O.
Seismic filename - Provide the file name in the local disk.
Advanced interpolate settings
X axis step - These interpolation settings are related to TT Net interpolation. Define the step size in X&Y directions сетка на которую будет дата переноситься точность (сам бин не изменяется естественно, только точность, ее можно ставить детоальной, если прореижваем то у меньшаем время запуска).
Y axis step - Interpolation step size in Y direction.
SegyReadParams - parameters for setting advanced parameters of reading seismic traces from disk:
Thread count (for SSD) - amount of treads for reading seismic traces from disk.
Bulk size (traces) - size of a chunk (data portion) for reading seismic traces from disk.
Execute on { CPU, GPU } - select which type of processor will be used for calculations: CPU or GPU.
Distributed execution - if enabled: calculation is on coalition server (distribution mode/parallel calculations).
Bulk size - chunk size is RAM in megabytes that is required for each machine on the server (find this information in the Information, also need to click on action menu button for getting this statistics):
Limit number of threads on nodes - limit numbers of of threads on nodes for performing calculations.
Job suffix - add an job suffix.
Set custom affinity - an axillary option to set user defined affinity if necessary.
Affinity - add your affinity to recognize you workflow in the server QC interface.
Number of threads - limit number of threads on main machine.
Run scripts - it is possible to use user's scripts for execution any additional commands before and after workflow execution:
Script before run - path to ssh file and its name that will be executed before workflow calculation. For example, it can be a script that switch on adn switch off remote server nodes (on Cloud).
Script after run- path to ssh file and its name that will be executed before workflow calculation.
Skip - switch-off this module (do not use in the workflow).
Output geometry - output geometry item for QC.
Dynamic time table - output dynamic time table item for QC.
There is no information.
There are no action buttons and Visual Vista Items.
The entire workflow example with all necessary modules (travel time calculation, migration and QC).
As input data we need travel time tables, seismic gathers (no NMO-ed), output geometry we can get from the input seismic gathers:
On the output we have migrated CIGs dataset, for QC we need to read it via Read seismic traces. For Stack please use PSDM imaging, it can create stack in depth and in time domains:

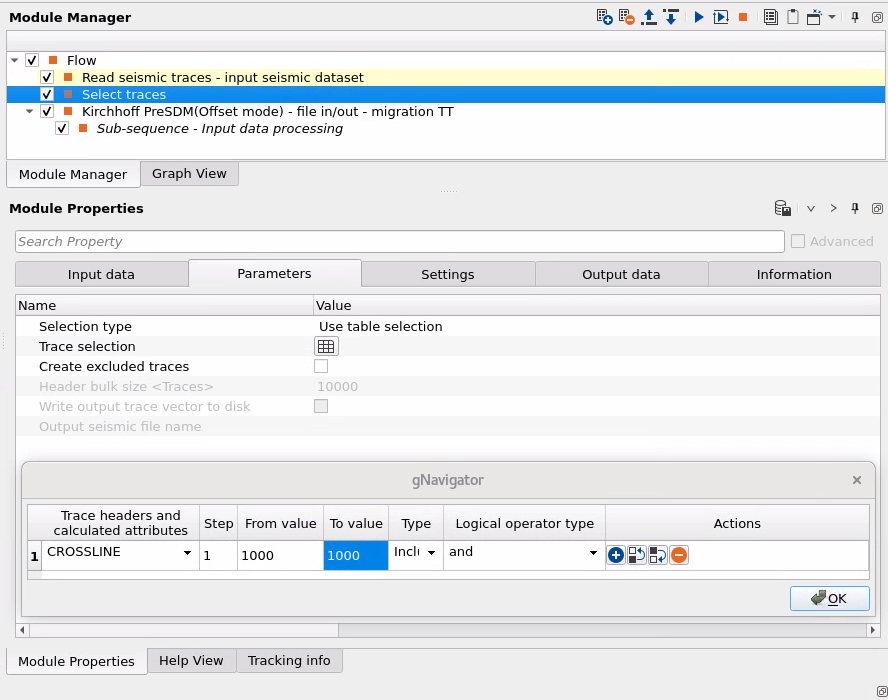

For the impulse response test we need to select one CMP from the input gathers and set ALL DATA WITHOUT SELECTION to the Output geometry:
