Add three first modules Read SEG-Y traces, Load geometry and define its parameters as shown below:

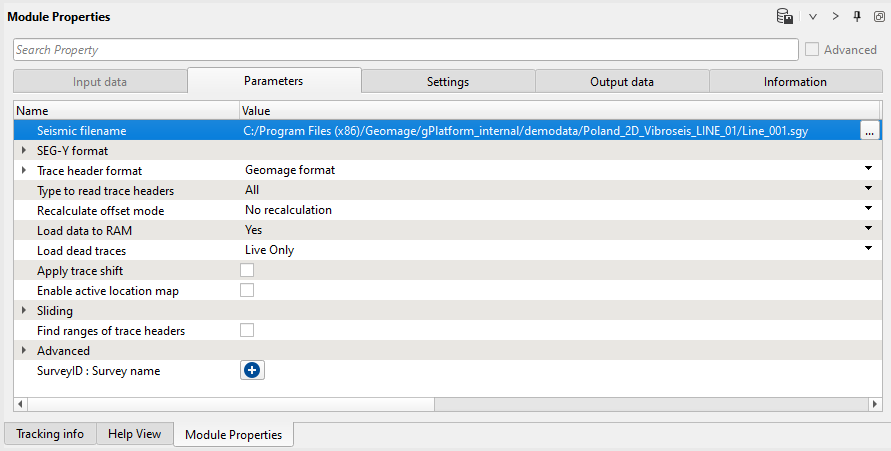

Read SEG-Y traces: for more details about module and its parameters please click on the link.



Once you have filled all parameters, run the module. Geometry will be assigned: output traces headers are updated, dead traces are removed from the data set.

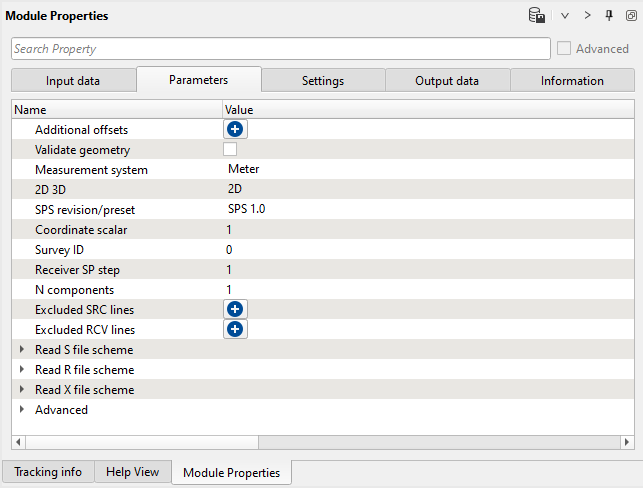

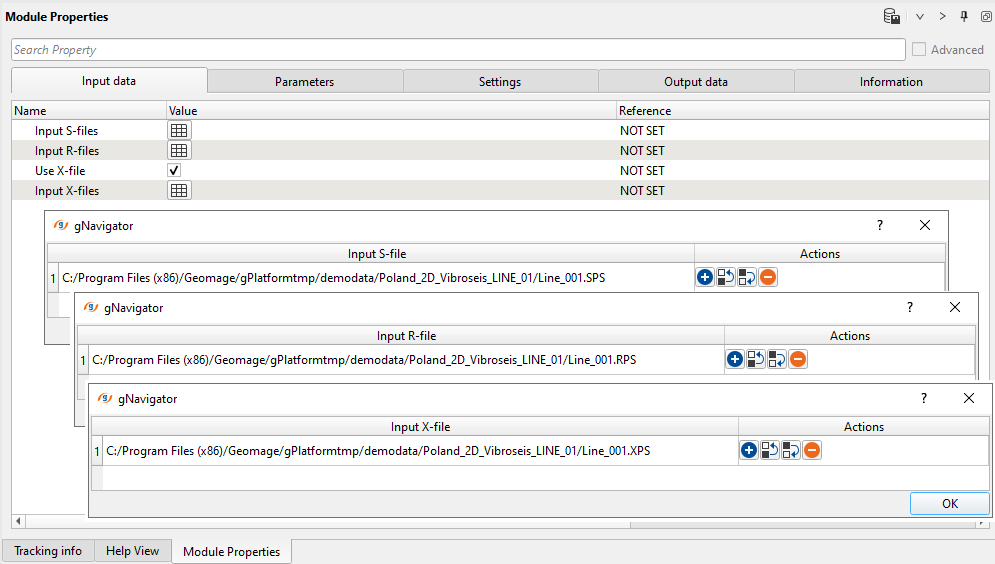

Load geometry from SPS:

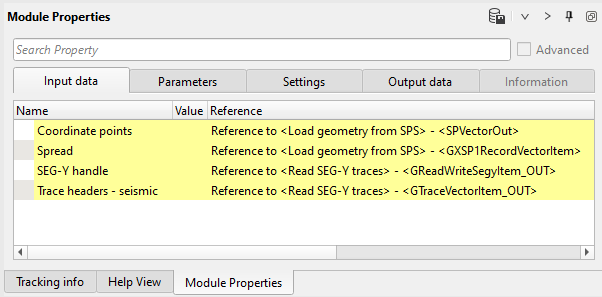

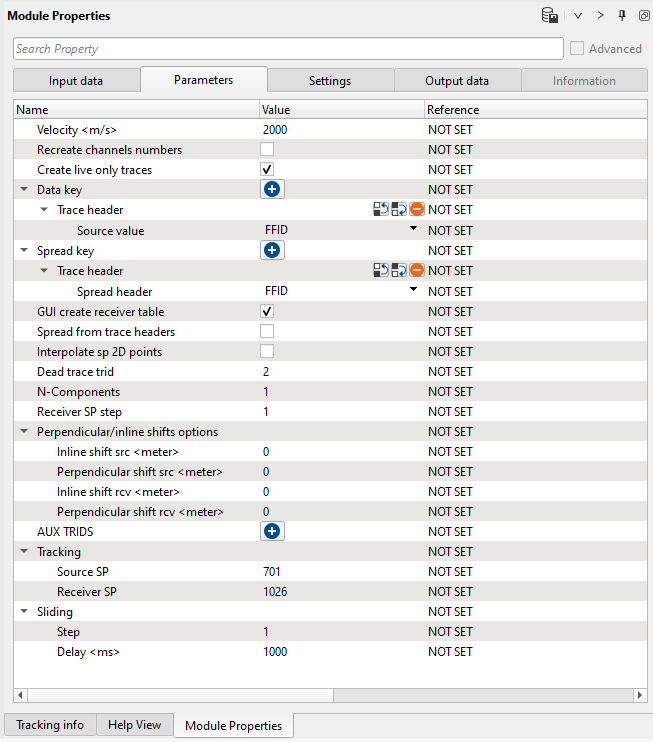

Geometry application:



Once you have filled all parameters and inputs, run the module. Geometry will be assigned: output traces headers are updated, dead traces are removed from the data set.
