Vint depth to Vint time

Interval velocity conversion from Depth domain to Time domain.

Theory

The algorithm for converting interval velocity from the depth domain to the time domain is used to transform seismic wave velocity data, defined in the depth domain, into corresponding time values. It works by using the interval depth and velocity for each layer of the Earth's crust, calculating the time required for seismic waves to travel through those layers. The algorithm keeps the data in interval time format, which is crucial for seismic analysis and modeling in the time domain rather than the depth domain.

Input data

Input V depth - Input interval velocity (depth domain) gather uploaded into RAM.

Parameters

Output time ratio - define a value of output sample interval (for Vint in time domain).

Output time length - define a value of output trace length in m/s (for Vint in time domain).

Settings

Execute on { CPU, GPU }

select which type of processor will be used for calculations: CPU or GPU.

Distributed execution

if enabled: calculation is on coalition server (distribution mode/parallel calculations).

Bulk size

chunk size is RAM in megabytes that is required for each machine on the server (find this information in the Information, also need to click on action menu button for getting this statistics):

Limit number of threads on nodes

limit numbers of threads on nodes for performing calculations.

Job suffix

add an job suffix.

Set custom affinity

an axillary option to set user defined affinity if necessary.

Affinity

add your affinity to recognize you workflow in the server QC interface.

Number of threads

limit number of threads on main machine.

Run scripts

it is possible to use user's scripts for execution any additional commands before and after workflow execution:

Script before run

path to ssh file and its name that will be executed before workflow calculation. For example, it can be a script that switch on and switch off remote server nodes (on Cloud).

Script after run

path to ssh file and its name that will be executed before workflow calculation.

Skip - switch-off this module (do not use in the workflow).

Output data

Output V time

- resulting interval velocity model in time domain.

Information

There is no information.

Actions

There is no actions.

Examples

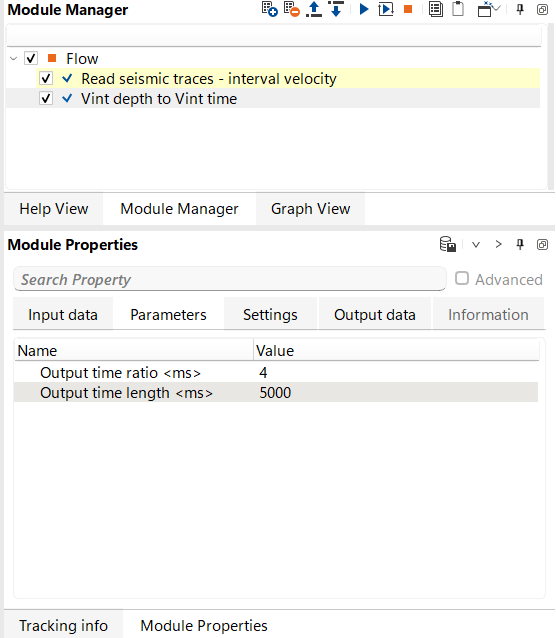

There in an example for a workflow: read interval velocity via Read seismic traces and connect it to the Vint depth to Vint time module:

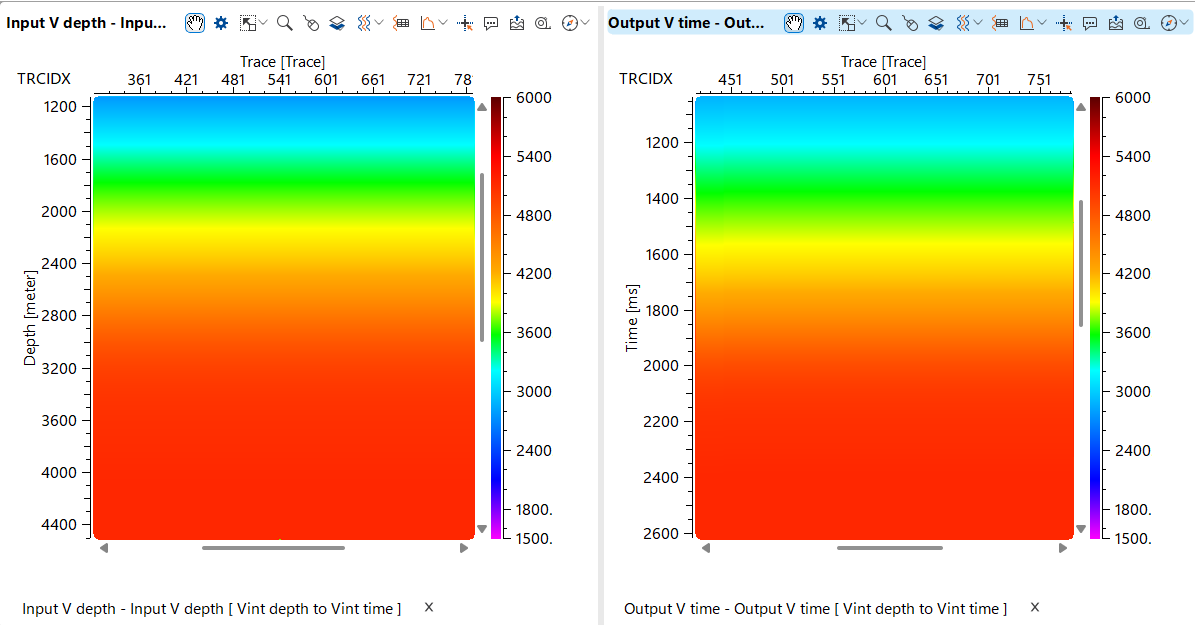

Open visual vista items of input (interval depth domain) and output velocities (interval time domain):

Video lesson

YouTube video lesson, click here to open [VIDEO IN PROCESS...]

If you have any questions, please send an e-mail to: support@geomage.com
