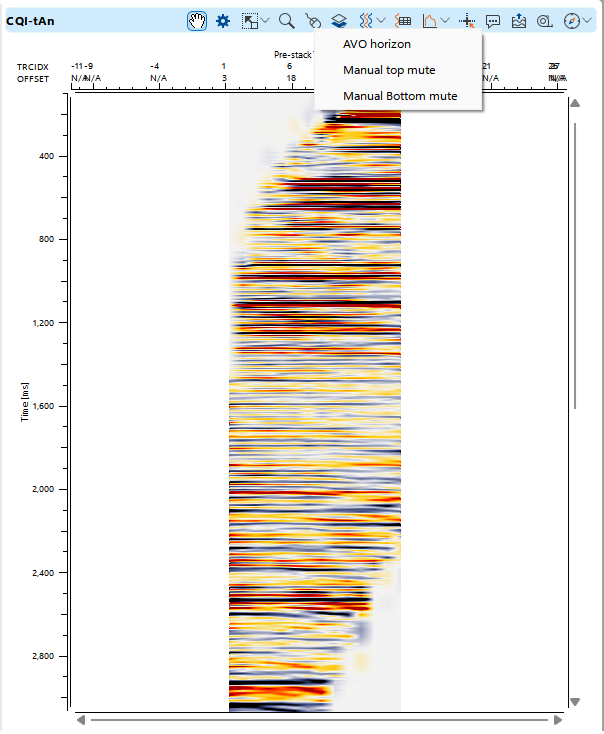

This view displays seismic gathers, showing how amplitude varies with offset or angle for different traces. It is used to analyze AVO behavior across a range of offsets, helping to identify patterns and anomalies that may indicate changes in subsurface properties. The Image Gather View is essential for detailed AVO interpretation, allowing for the examination of amplitude variations before cross-plotting or other analyses.
Functional panel allows user to perform the following actions:
open View properties panel
adjust view area to all visible objects
set/unset zoomable
set control item from following options:
AVO horizon
Manual Top mute
Manual Bottom mute
add vista
select traces
trace header data
spectral analysis tool - multi selection
spectral analysis tool - single selection
enable mouse tracker
enable tool tip
export picture
ruler tool
show compass
show minimap
show scale bar
