Import images

Top  Previous  Next



There are two ways to import image file into the project

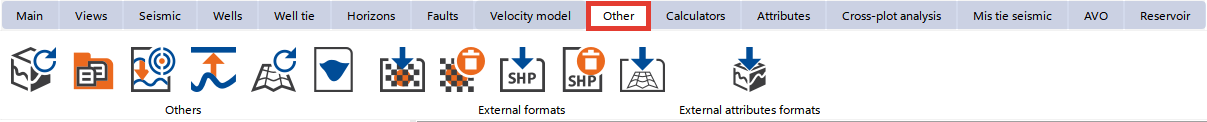

Option 1: Navigate to the Other bar



 Ribbon_bar_others



 Load picture files        press Load picture file button

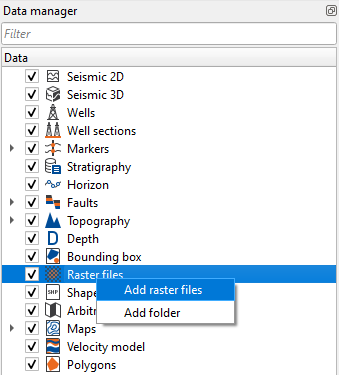

Option 2: On Raster files icon in Data manager press right mouse button and choose Add raster files option



 add_raster_files

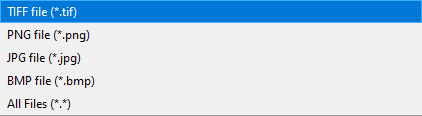

 Locate file and press Open. You can load geo-referenced tiff, png, jpg, bmp formats



 image_file_formats

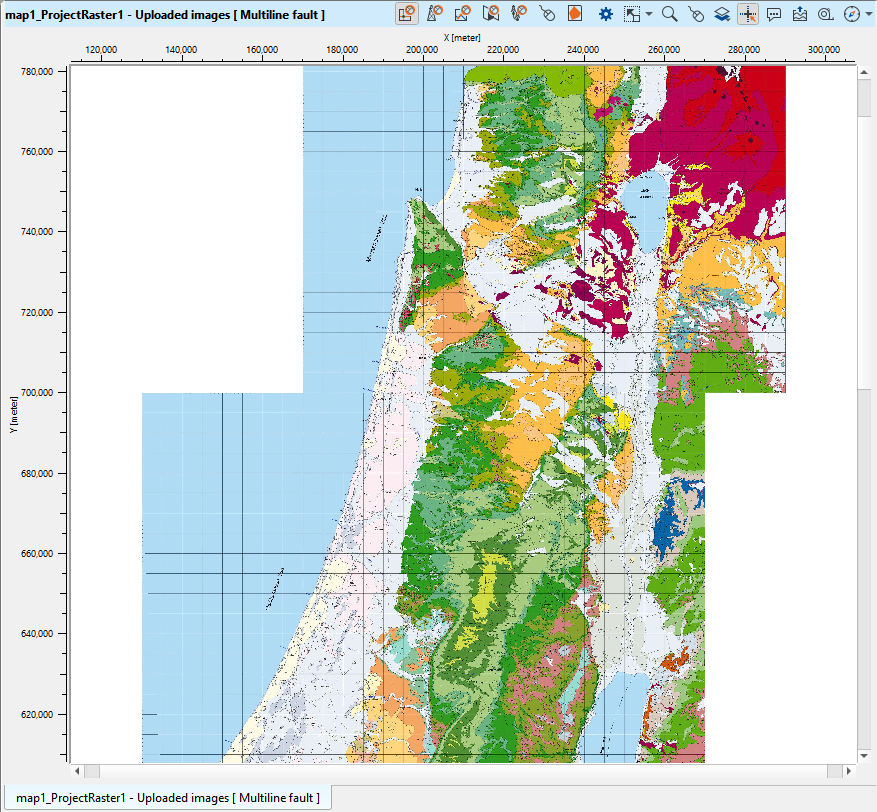

Loaded geo-referenced image on location map view



imported_image



Note

 The word file must have same name as image file and located in the same directory



image_file_formats2



For more information about geo-referenced formats see Image Data Formats
