Theory

Load item module is used to recall previously saved items. This is useful whenever the user wants to apply static correction items, velocity picks, mute picks or bin grids.

Input data

Loaded item path

specify/choose the previously saved vista item.

Parameters

There are no parameters associated with this module.

Settings

Skip

By default, FALSE(Unchecked). This option helps to bypass the module from the workflow.

Output data

Loaded item

after executing the module, it outputs/generates loaded item as a vista item for making connections/references to the next sub-sequent module. In case, the loaded item is a bin grid then it will output/generates output bin grid.

Information

There is no information available for this module.

Examples

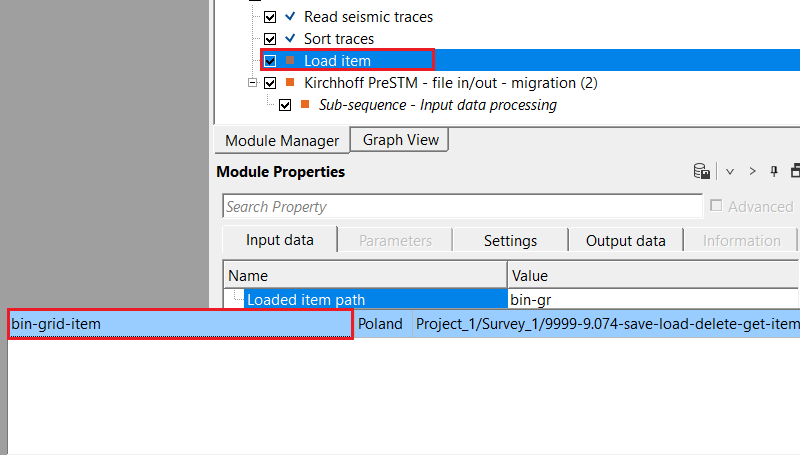

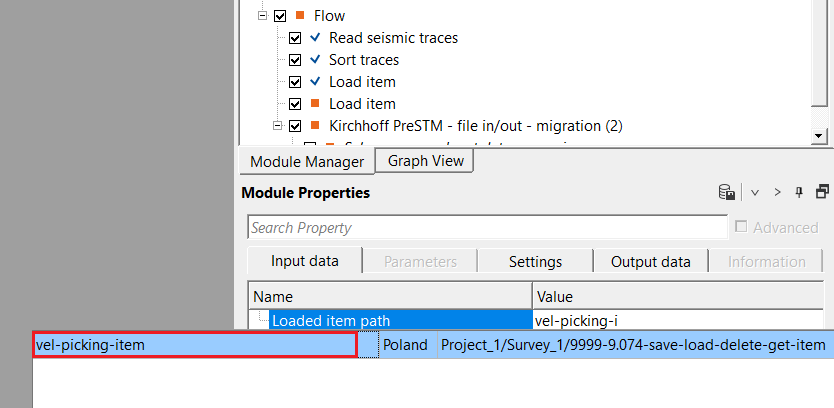

In this example workflow, we are calling previously saved bin grid and velocity picking items to feed into Kirchhoff PreSTM - file in/out - migration(2) module. This module requires bin grid as well as input velocity information.

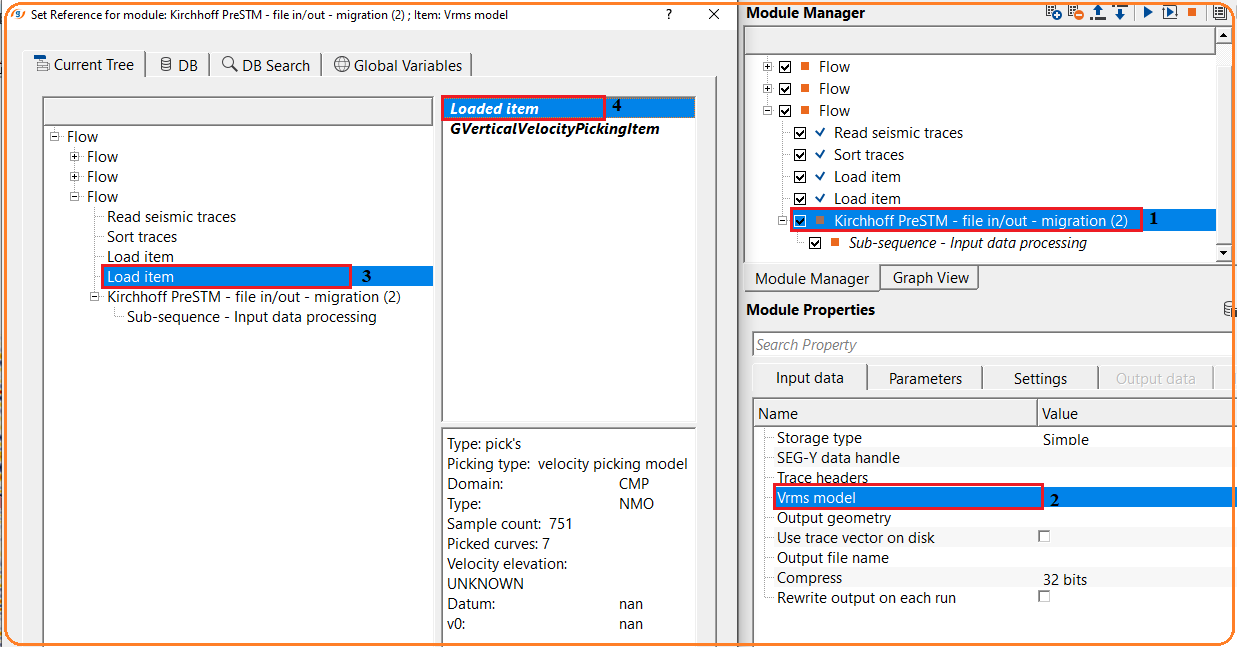

The user can set the reference either of the one among them i.e. Load item or GVerticalVelocityPickingItem.

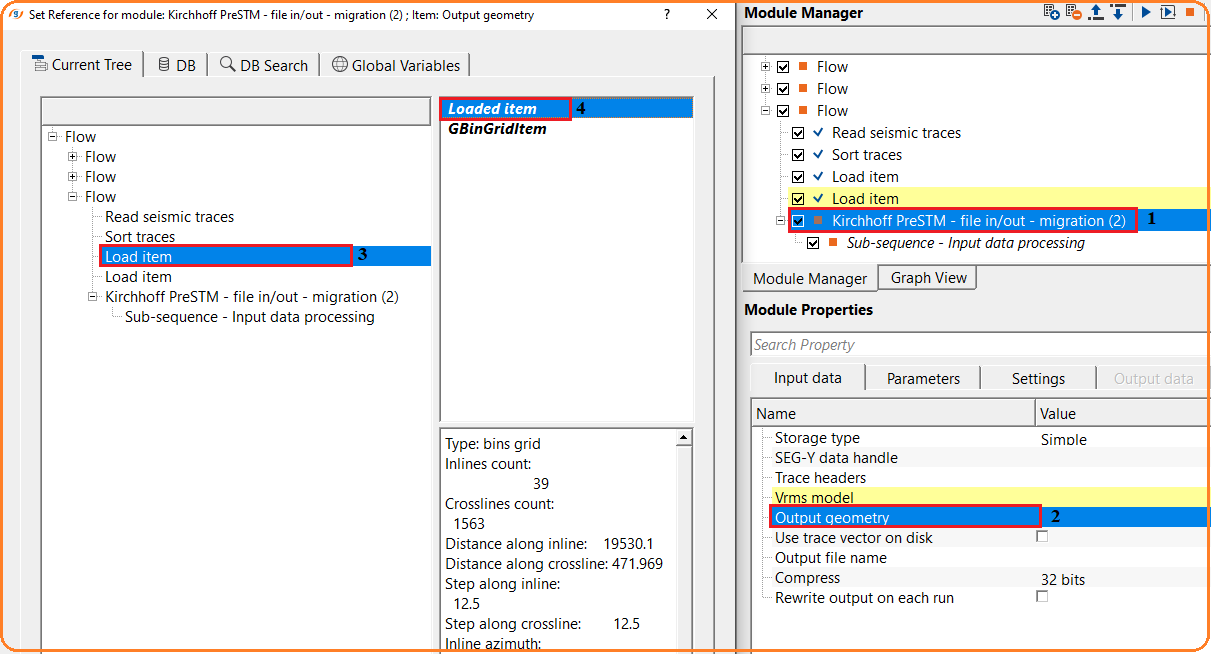

Likewise, select Load item or GBinGridItem. Both are same and choose any one of them.

Actions

There are no action items available for this module.

Video lesson

YouTube video lesson, click here to open [VIDEO IN PROCESS...]

Related articles

Yilmaz. O., 1987, Seismic data processing: Society of Exploration Geophysicist
